1983 Honda Aero 50 NB50M
- ENGINE
- Engine: Forced-air-cooled 49cc two-stroke with automatic oil injection
- Spark plug: BPR6HS
- Plug gap: .028
- Starter: Electric
- DRIVETRAIN
- Transmission: V-maticTM
- Drive: Belt
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Wheelbase: 1120mm (44.1 in.)
- Dry weight: 56.7 kg (125 lb)
- Seat height: 690mm (27.2 in.)
- OTHER
- Accessory: Rear carrier
- Color: Monza Red with blue "AERO" logo and black stripes
- Color: Persian Blue with gradient orange to red "AERO" logo and silver stripes
- The stripes are on the front fender
- V.I.N.: JH2AB0709DK000004
- Engine: AB07E-5006313

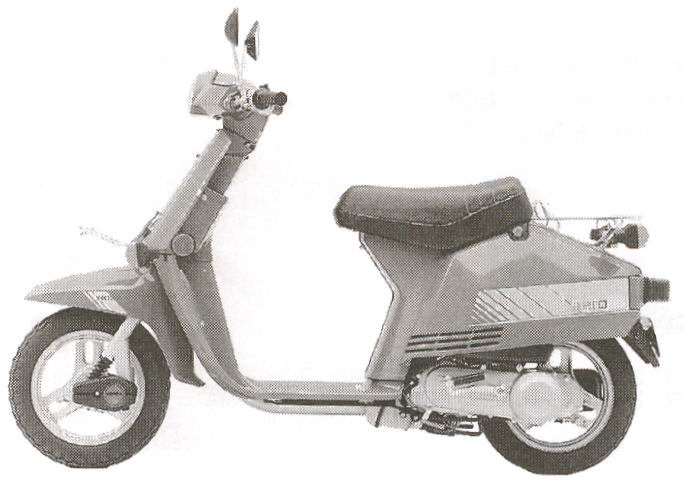

1983 NB50M Aero 50
1984 Honda Aero 50 NB50M
- ENGINE
- Engine type: Forced-air-cooled two-stroke
- Displacement: 49cc
- Bore & Stroke: 40 x 39.3mm
- Compression ratio: 7.2:1
- Spark plug: BPR6HS
- Plug gap: .028
- Fuel Delivery: 14mm piston-valve type
- Ignition system: CDI
- Oil: Automatic oil injection
- Starter: Electric and kick
- DRIVETRAIN
- Transmission: Variable ratio V-maticTM
- Drive: V-Belt
- Clutch: Automatic centrifugal
- CHASSIS / SUSPENSION / BRAKES
- Brakes: Front and rear drum
- Front suspension: Bottom-link type
- Rear suspension: Single shock
- Tire size: 2.75-10 (front and rear)
- Wheels: Pressed steel
- DIMENSION
- Wheelbase: 1120mm (44.1 in.)
- Dry weight: 56.7 kg (125 lb)
- Overall length: 1600mm (63 in.)
- Overall width: 630mm (24.8 in.)
- Seat height: 690mm (27.2 in.)
- Fuel capacity: 3.2 liters (.85 US gal) (.7 Imp gal)
- OTHER
- Accessory: Rear carrier
- Color: Berry Glow Red with black "AERO" logo and silver stripes
- Color: Neptune Blue with red "AERO" logo and silver stripes
- Color: Shiny Orange
- There are no stripes on the front fender this year
- V.I.N.: JH2AB0708EK100001
- Engine: AB07E-5100002

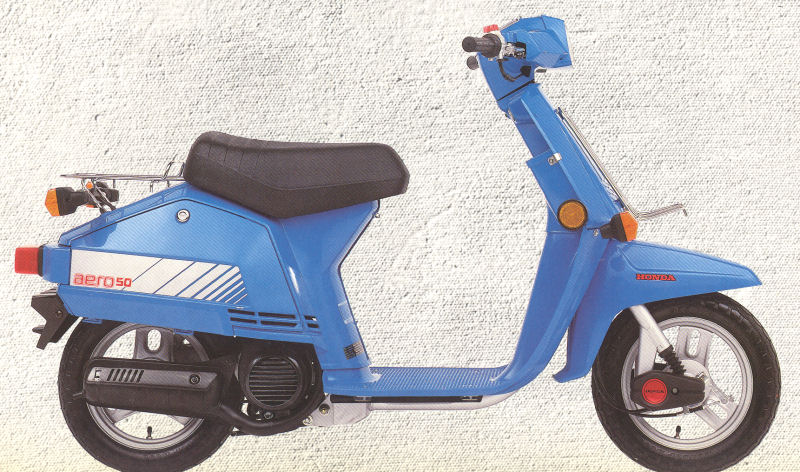

1984 NB50M Aero 50
Click image to enlarge
1985 Honda Aero 50 NB50M
- ENGINE
- Engine: Forced-air-cooled two-stroke
- Oiler: Automatic oil injection
- Displacement: 49cc
- Bore & Stroke: 41 x 37.4mm
- Compression ratio: 6.8:1
- Spark plug: BPR6HSA/li>
- Plug gap: .028
- Fuel Delivery: 14mm piston-valve type
- Ignition system: CDI
- Starter: Electric
- DRIVETRAIN
- Transmission: Vriable Ratio V-maticTM
- Drive: V-Belt
- Clutch: Automatic centrifugal
- CHASSIS / SUSPENSION / BRAKES
- Brakes: Front and rear drum
- Front suspension: Leading-link
- Rear suspension: Single shock
- Tire size: 2.75-10 front and rear
- Wheels: Pressed steel
- DIMENSION
- Wheelbase: 1130mm (44.5 in.)
- Dry weight: 54.5 kg (120 lb)
- Overall length: 1595mm (62.8 in.)
- Overall width: 625mm (24.6 in.)
- Seat height: 690mm (27.2 in.)
- Fuel capacity: 3.7 liters (.98 US gal.) (.81 Imp. gal.)
- OTHER
- Accessory: Rear carrier
- Color: Monza Red with black seat and interior
- Color: Black with red seat and interior
- V.I.N.: JH2AF0908FS000001
- Engine: AF05E-3000001

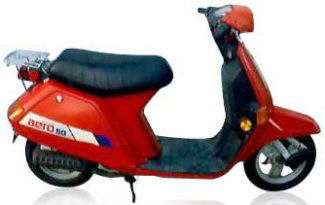

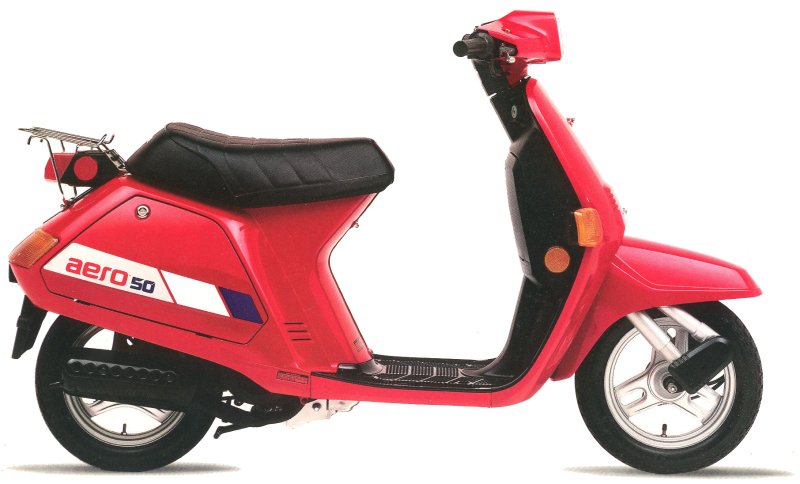

1985 NB50M Aero 50
Click image to enlarge
1985 NB50M Aero 50
