1976 Cadillac Seville
As the 1976 model year began, signs were already appearing that change was imminent; that Cadillac's position might even be in jeopardy one day. For the moment, though, little had changed. Only Lincoln competed in the domestic luxury market, as Chrysler had abandoned its Imperial. During the '75 model year a much different kind of Caddy had emerged: the compact Seville, powered by a comparatively tiny, fuel-injected 350 V-8. Unlike the soft American ride and slushy handling typified by big Cadillacs, Seville delivered control more appropriate in a European sedan. Led by Seville's popularity, Cadillac set records for both sales and production.
1976 Cadillac Seville
The new international-size Seville (introduced in mid-year) was 27 in. shorter, 8 in. narrower and a thousand pounds lighter than a Sedan DeVille. The smaller Seville, however, actually cost more than bigger Cadillacs. It was powered by a more reasonably sized 350 cu. in. V-8 with electronic fuel injection.
The Seville included a Controlled (limited-slip) Differential for extra traction. It had lamp monitors on each front fender to show the status of the front and rear lights. It also had optional illuminated entry and theft-deterrent systems and a new Freedom battery which never needed water. It offered new-look turbine-vaned and wire wheel covers. A new option locked doors when the lever was shifted to "Drive." Cadillac also offered Track Master, a computerized skid-control system that automatically pumped the back brakes in an emergency situation to shorten stopping distance.
Of special note on the option list was the Air Cushion Restraint System. This was a forerunner of the air bags that received so much publicity a few years later. Another option was the Astroroof, introduced in 1975, with sliding sunshade that permitted use as an electrically-operated sunroof or a transparent closed skylight. Both it and the "ordinary" sunroof panels could give safety along with an open-air feeling -- especially since no convertible was offered.
The Seville had as standard:

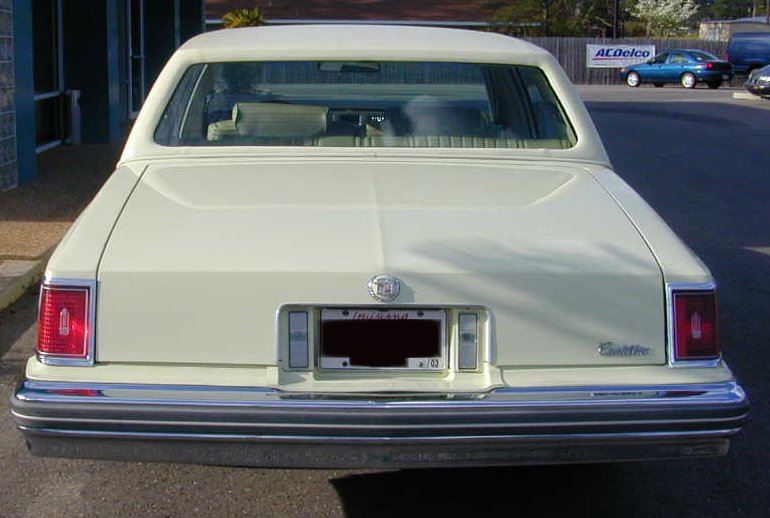

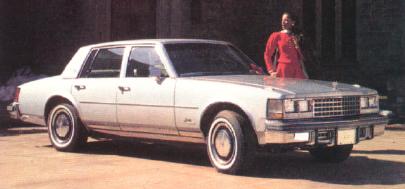

Described as "among the most fully equipped cars in the world." the Seville had debuted in May 1975 and changed little for its first complete model year. Marketed against Mercedes, the international-size, contemporary styled four-door sedan offered near-European ride/handling qualities, along with respectable fuel mileage. Seville could hit 60 MPH in 11 seconds or less, top 110 MPH, and cruise gently on the highway. The computer-designed chassis was actually derived from Chevrolet's Nova, but Cadillac did an extensive reworking of the X-body, with exclusive body panels, and mounted a vinyl top. Seville's front end was unmistakably Cadillac. A horizontal crosshatch grille was arranged in three rows, divided into two sections by a vertical center bar. Quad rectangular headlamps sat above twin rectangular parking/signal lamps and alongside large wraparound cornering lamps. A Seville nameplate was fairly low on the front fender, behind the wheel opening. Up front: a stand-up wreath/crest hood ornament. Large wraparound taillamps (far different from full-size models) and full wheel openings complemented the formal profile.
Body preparation included two primers, four finish coats, and an additional lacquer coat. New zincrometal was used in key areas to fight rust. All told, Seville was described as having an "uncluttered" look, less glitzy than other luxury cars had become. Measuring about two feet shorter than full-size domestic luxury cars, the new breed of Caddy sold well from the start.
The standard 350 cu. in. V-8 (from Oldsmobile) with electronic fuel injection was mounted on a steel sub-frame connected to the body sheet metal through damping cushions, to isolate vibration. An impressive standard equipment list included
Seville's dash held an upper "information band" with functional control panels to the driver's left and right. 50/50 front seats were trimmed in seven Mansion Knit cloth colors, or optional genuine Sierra Grain leather in eight colors. A cross-grain padded vinyl roof was standard.
The Seville was a Series 6K and the body style was S69 representing a 4-door sedan seating five people (2 in the front, 3 in the back). The factory price was $12,479. The shipping weight was 4232 lb. And 43,772 Sevilles were produced.
Model | Series Number | Body Style | Seating | Factory Price | Shipping Weight | Production Total |
---|---|---|---|---|---|---|
6K | S69 | 4-door Sedan | 5 | $12,479 | 4232 lb | 43,772 |
Type | 90-degree, overhead valve V-8 |
Block and Head | cast iron block and head |
bore & stroke | 4.057 x 3.385 in. |
Displacement | 350 cu. in. (5.7 liters) |
Compression ratio | 8.0:1 |
Brake horsepower | 180 at 4400 R.P.M. |
Torque | 275 lb.-ft. at 2000 R.P.M. |
Main bearings | Five |
Valve lifters | Hydraulic |
Fuel delivery | Fuel injection (speed density, port-injected) |
Manufacturer | Oldsmobile |
VIN Code | R |
Wheelbase | 114.3 in. |
Overall length | 204.0 in. |
Height | 54.7 in. |
Width | 71.8 in. |
Front Tread | 61.3 in. |
Rear Tread | 59.0 in. |
Standard tires | GR78 x 15-B SBR wide WSW |
Transmission | Three-speed Turbo Hydra-matic with column shift |
Gear ratios | (1st) 2.48:1; (2nd) 1.48:1; (3rd) 1.00:1: (Rev) 2.07:1 or 2.09:1. |
Standard axle (final drive) ratio | 2.56:1 |
Optional final drive | 3.08:1 |
Rear axle type | Salisbury |
Steering | variable ratio power assisted |
Front suspension | unequal length upper/lower control arms, coil springs, stabilizer bar |
Rear suspension | multiple leaf spring |
Body construction | separate body and perimeter frame. |
Wheel size | 15 x 6 JJ |
Brakes | front ventilated disc. rear drum with power booster |
Ignition | HEI electronic ignition |
Fuel tank | 21 US gal. |
