A major restyling marketed the "Gas Crunch" era Cadillacs of 1974. A wide egg crate grille was used. Dual round headlamps were mounted in close together square bezels. Further outboard were double-deck wraparound parking lamps. Shorter vertical grille guards appeared in about the same position as before. Rear fender sides were flatter, without the elliptical bulge. The thin belt line moldings was positioned lower by several inches. The rear end had vertical bumper ends with the taillights built in. Both bumpers, especially the rear, protruded out further from the body. Coupes sported large, wide "coach" windows giving a thick center pillar look. A new curved instrument panel housed a digital clock. Standard equipment included:
Model | Body/style Number | Body Type | Seating | Price | Weight | Production total |
---|---|---|---|---|---|---|
6C | C47/G |

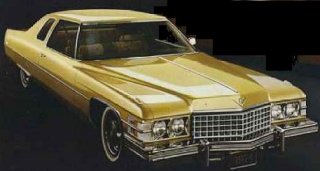

![]() 2-door Hardtop Calais Coupe | 6 pass | $7371 | 4900 | 4,449 |
6C | C49/N |

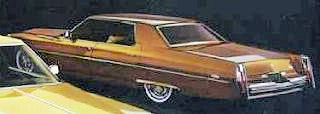

![]() 4-door Hardtop Calais Sedan | 6 pass | $7545 | 4979 | 4,449 |
NOTE:
Model | Wheelbase | Overall length | Width | Tires |
---|---|---|---|---|
Brougham | 133 in | 234 in | 80 inches | L78 x 15/B white sidewall bias belted |
Eldorado | 126 | 224 in | ||
Commercial chassis | 157.5 in | - | L-78 x 15/B black sidewall bias belted | |
Seventy-Five | 151.5 in | 252 in | ||
All others | 130 in | 231 in |
Description | Standard Engine | Eldorado Engine |
Engine type | V-8 Overhead valves. Cast iron block | V-8 Overhead valves |
Main bearings | Five | Five |
Valve lifters | Hydraulic | Hydraulic |
Displacement | 472 cubic inches (7.7 litres) | 500 cubic inches (8.2 litres) |
Bore and stroke | 4.300 x 4.060 inches (109 x 103 mm) | 4.300 x 4.304 (109 x 109.3 mm) |
Compression ratio | 8.25:1 | 8.25:1 |
Brake horsepower (net SAE) | 205 at 4400 rpm | 210 @ 3600 rpm |
Torque | 365 ft. lbs @ 2400 rpm | 380 ft. lbs. @ 2000 rpm |
Oil pressure | 35 psi | 35 psi |
Carburetor | Rochester four-barrel Quadrajet Model 4MV |
