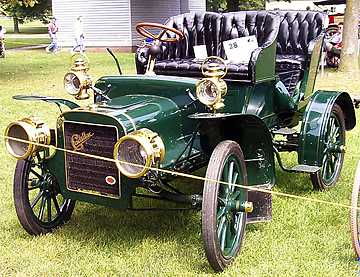

1907 Cadillac Model M Victoria Touring

The Model M chassis was the same as the Model K except for a two inch longer wheelbase. Additional body styles were offered. Straight line Touring model was available again. The folding Tonneau was new. The tonneau folded to look like a runabout but this body was not available on the shorter Model K chassis.

First production one cylinder Coupe offered.

I.D. NUMBERS

Serial numbers on plate on rear of body (with engine number). Engine numbers were stamped in three places on the crankcase:

On the top of the crankcase at the right edge of cylinder flange, near water outlet
On the top surface of the crankcase at the left, front mounting leg
On a plate on the rear of body

Blank spaces on the patent plate were for additional patent dates, not engine or serial number

Serial number: 21851 to 22150 and 24075 to 24350

MODEL M ENGINE

1907 Cadillac

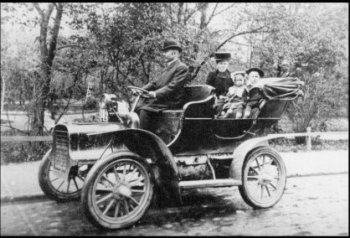

1907 Cadillac Model M

Click to supersize

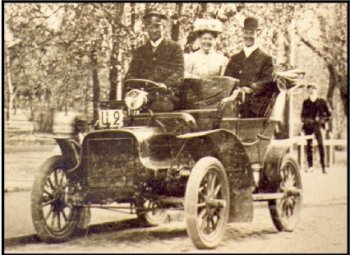

1907 Cadillac Model M

MODEL M CHASSIS

MODEL M DRIVETRAIN

Different combinations of 9 or 10-tooth driving sprocket with 31, 34, 38, 41, or 45-tooth driven sprocket gave ten possible ratios from 3.1:1 to 5:1.
Lower ratios for runabout to be run on smooth, level roads to higher ratios for loaded delivery cars to be run on rough, hilly roads.
Instructions for changing sprockets were furnished to owners, but the change involved disassembly of the transmission and rear axle -- definitely not a "quick-change" set-up
