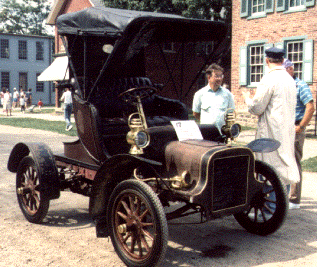

Introduced in January, 1905, the one-cylinder Model E was the same as the 1904 model except there was a more normal looking "hood" with sharp corners and side louvers. The radiator was raised to fit the shape of the "hood." The detachable tonneau was not available. The front axle was now tubular and arched with a truss. Introduced at mid-year, the rocker shaft was located between the front axle and spring. The linkage on transmission bands was balanced.
The price of the Model E was $750. Calendar year sales and production (combined with the B, C, and F models) was 4029. The model year sales was the same.
Model No. | Body type | Seating | Price | Weight |
---|---|---|---|---|
Model E | Runabout | 2 | $750 | 500 kg |
Engine |
Horizontal, with cylinder to the rear |
Cylinders |
One |
Block |
Cast iron |
Water jacket |
Copper |
Bore & Stroke |
127mm x 127mm |
Displacement |
1.609 Liters |
Brake H.P. |
"Higher than advertised or calculated H.P." Advertised H.P.: 9 |
Main bearings |
Two |
Valve lifters |
mechanical |
Engine numbers |
4200-5000 with EF (1904), 5000-6600 with F, 6600-8200. with CF, 8200-8350 with ACF, 13501-13706 with ACF-special |
Carburetor |
Updraft mixer carburetor manufactured by Cadillac. |
Brake type |
Mechanical |
Brake wheels |
two wheels |
Brake contraction |
on inboard drums |
Wheels |
12 spoke wood wheels -- 22 in. |
Tires |
28 x 3 Clincher |
Wheelbase |
1880mm |
Overall length |
2743mm |
Height |
1422mm |
Front / Rear Tread |
1435mm |
Optional Front / Rear Tread |
1549mm |
Weight |
500 kg |
Transmission type |
Planetary transmission |
Speeds |
Two Forward (3:1 and 1:1) and one reverse |
Controls |
low -- foot pedal, rev., high -- lever to right. |
Clutch |
Low, rev. -- bands, High disc clutch |
Drive |
Chain drive |
Differential |
Spur gear differential with overall ratio 3.1:1 to 5:1 |
Overall ratio
|
3.1:1 to 5:1 (Different combinations of 9 or 10 tooth driving sprocket with 31, 34, 38, 41, or 45 tooth driven sprocket gave ten possible ratios from 3.1:1 to 5:1. Lower ratios for runabout to be run on smooth, level roads to higher ratios for loaded Delivery to be run on rough, hilly roads. Instructions for changing sprockets were furnished to owners, but the change involved disassembly of the transmission and rear axle -- definitely not a "quick-change" setup. |
