Cadillac fielded five models: Model G, Model H, Model M, Model S, and Model T.
| Description | Four cylinder, L-head Individual cast iron cyl., copper water jacket |
|---|---|
| Bore & Stroke | 4 x 4.5 in. (101.6mm x 114.3mm) |
| Displacement | 226.2 cu. in. (3.707 liters) |
| ALAM H.P. | 25.6 hp |
| Advertised H.P. | 25 hp |
| Main bearings | Five |
| Valve lifters | mechanical |
| Carburetor | throttled float feed, jet type made by Cadillac |
| Wheelbase | 100 in. |
|---|---|
| Front/Rear tread | 56 in. |
| Tire | 32 x 3.5 (34 x 4 limo) |
| Description | Cylinders cast singly, copper water jackets, detachable combustion valve chamber |
|---|---|
| Main bearings | replaceable without removing crankshaft |
| Valves | interchangeable inlet and exhaust valves operated by push rod & roller cam follower on single gear driven camshaft |
| Accessories | belt driven fan, water pump, and oiler; splash lubrication |
| Suspension | three point engine suspension |
| Cranking | clockwise cranking |
| Carburetor | float feed carburetor controlled by foot throttle or automatic ring-type governor; jet type carburetor made by Cadillac |
| Transmission type | selective sliding gear transmission, independently attached to frame |
The MODEL H for 1908 was the same as the 1907 Model H except the coupe body was dropped from the line. Also the touring body was now similar to the Model G with continuous molding across the center of the doors. The model H no longer supplied an engine speed governor or the interlock between brakes and clutch. Tire size increased to 34 x 4.
The MODEL M was built only as a delivery vehicle. It was the same
as the 1907 delivery except that prices now included two oil side lamps, an
oil tail lamp, and a bulb horn. Headlamps were not included as standard
equipment on Cadillacs until 1910. Also it did not have the longer
wheelbase or running boards found on the Model S or Model T.

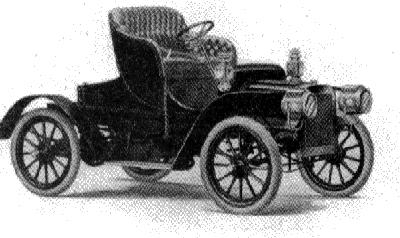

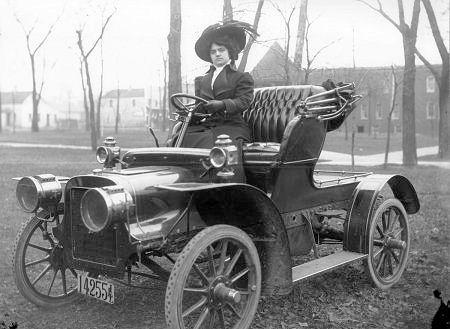

The MODEL S has the same chassis as the 1907 model except the wheelbase on all body styles increased to 82 in. and full running boards replaced the step plates. Single and double rumble seat options were available on the straight line or Victoria styles runabouts. If rumble seat passengers were to be carried regularly, it was recommended that tire size be increased from 30 x 3 to 30 x 3-1/2.

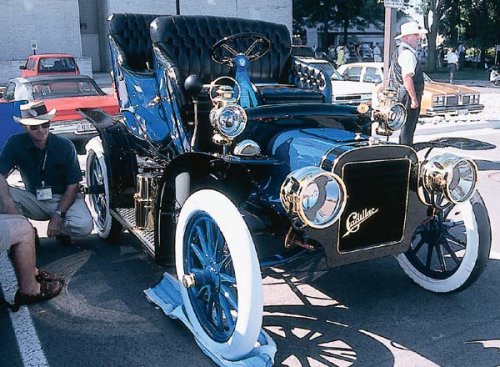

The MODEL T has the same chassis as the Model S except the coupe
did not have running boards. The bodies were the same as the 1907 Model
M except the folding tonneau was dropped. The Victoria style top was now
available for the tonneau of the Victoria Touring.
| Model G & H serial numbers | on plate on rear of
body or on dash (with engine no.); engine numbers were stamped on top surface of crankcase - in front of and to the left of number one (front) cylinder. |
|---|---|
| Model G engine no. | 30426-30500 (1907- 1908), 30501-31032 (1908) |
| Model H engine no. | 10201-10709 (1906-1908). |
| Model M, S & T | serial numbers on plate on rear of
body (with engine number. Engine numbers were stamped two places on crankcase: 1. Top, right edge of cylinder flange, near water outlet. 2. Top surface of left, front mounting leg. Also on plate on rear of body (with serial number). (Blank spaces on patent plate are for additional patent dates, not engine or serial number.) |
| Model M engine no. | 24075-24350 with K, S. T (1907). |
| Model S engine no. | 24075-24350 with K,- M, T (1907), 24351-25832 with T. |
| Model T engine no. | 24075-24350 with K. M. S (1907), 24351-25832 with S. |
| Body Type & Seating | ||
|---|---|---|
| ||
| Model G | ||
| 2-dr. Tr.-5P | $2000 | |
| 2-dr. Limo.-5P | $3000 | |
| Runabout. - 3P | $2000 | |
| Runabout - 4P | $2025 | |
| Model H | ||
| 2-dr. Tr.-5P | $2500 | |
| 2-dr. Limo. - 6P | $3600 | |
| Runabout - 2P | $2400 | |
| Model M | ||
| Delivery - 2P | $950 | |
| Model S | ||
| Straight Line Runabout - 2P | $850 | |
| Vic. Runabout. - 2P | $850 | |
| Vic. Runabout w/single rumble | $875 | |
| St. Line Runabout w/double rumble | $885 | |
| Model T | ||
| 2-dr - St. Line Tr. - 4P | $1000 | |
| 2-dr. Vic. Tr. - 4P | $1000 | |
| 2-dr. Coupe - 2P | $1350 | |
| Model H | Model G | Model M, S, T | |
|---|---|---|---|
| Engine type | Vertical, in-line, L-head. Four. Individual cast iron cyl., copper water jacket. | Horizontal, with cylinder to rear. One cylinder. Cast iron cylinder, with copper water jacket | |
| Bore & stroke | 4.375" x 5.00" (111.1mm x 127mm) | 4.00 x 4.50" (101.6mm x 114.3mm) | 5.00 x 5.00" (127mm x 127mm) |
| Displacement | 300.7 cid (4.927 liters) | 226.2 cid (3.707 liters) | 98.2 cid (1.609 liters) |
| Brake HP | "Higher than advertised or calculated" | ||
| ALAM HP | 30.625 | 25.6 | 10 |
| Advertised HP | 30 | 25 | 10 |
| Main bearings | 5 | 5 | 2 |
| Valve lifters | mechanical | ||
| Carburetor | throttled, float feed, jet type made by Cadillac | Updraft mixer manufactured by Cadillac | |
| Model M Delivery | Model S | Model T Touring | Model T Coupe | Model G | Model H | |
| Wheelbase | 76 in. | 82 in. | 82 in. | 82 in. | 100 in. | 102 in. |
|---|---|---|---|---|---|---|
| Front/Rear Tread | 56 in. | 56 in. (61 in. opt.) | 56 in. (61 in. opt.) | 56 in. (61 in. opt.) | 56 in. | 56.5 in. |
| Overall length | 10' 1" | 10' 2" | ||||
| Height | 5' 4" | 5' 4" | ||||
| Tires | 30 x 3-1/2 | 30 x 3 | 30 x 3-1/2 | 30 x 3-1/2 | 32 x 3-1/2 (34 x 4 limo) | 34 x 4 |
| Feature | Model G | Model H | Models M, S, and T |
|---|---|---|---|
| Transmission | Selective sliding gear transmission | Planetary transmission | Planetary transmission |
| Speeds | 3 Forward, 1 Reverse | 3 Forward, 1 Reverse | 2 Forward (3:1 and 1:1), Reverse (3:1) |
| Drive control | Right-hand drive with controls to the right | Right-hand drive with controls to the right | Low (foot pedal), reverse & high (lever to the right) |
| Clutch | Leather faced cone clutch | Twin disc in flywheel, disc and three bands on transmission | disc clutch |
| Drive | Shaft drive | Shaft drive | Chain drive |
| Axle | Live axle, bevel drive | Live axle, bevel drive | |
| Differential | Spur gear | Bevel differential | Spur gear |
| Overall ratio | 3.1:1 to 5:1 | ||
| Brakes | Mechanical brakes on two wheels; service and emergency brakes on rear drums | Mechanical brakes on two wheels; service and emergency brakes on rear drums | Mechanical brakes on two wheels; contrac- ting on inboard drums |
| Wheels | Wood artillery wheels, 10 spokes front, 12 spokes rear | Wood artillery wheels, 12 spokes front, 12 spokes rear | Wood wheels, 12 spokes |
| Touring & Roadster Wheel size | 25 in. Limo=26" |
26 in. | Model M and T=23 in. Model S=24 in. |
|
|
||||||||||||||||||||||||
| Model G: Headlights. Rubber, leather, and mohair tops in three-bow, cape cart, and victoria styles | $90.00 to 200.00 |
| Model H: Headlights. Lined Cape Cart top for Touring | $150.00 |
| Model S: Headlights. 30 x 3-1/2 tires on Runabouts with rumble | $50.00 |
| Model S: Rubber top with side curtains & storm apron | $60.00 |
| Model S: Leather top with side curtains & storm apron | $80.00 |
| Model S: Victoria style top (factory installed only) | $175.00 |
| Model S: Storm front w/windows to replace storm apron | $15.00 |
| Model T: Headlights. Cape Cart top | $115.00 |
| Victoria style top (factory installed only) | $175.00 |
The model G was introduced in November, 1907. Calendar year sales and production was 1030 (1907-1908). Model year sales and production: same. The President of Cadillac was C. A. Black.
Note: The bulky, complicated, planetary transmission luxury fours were too great a first leap from the single cylinder, which had become passe. The compromised Model G design formed a solid basis for the "Thirty," which was to be the single line for Cadillac through 1914. Had the Brush design concepts been perpetuated, the company might well have failed. Its move into a firm position in the luxury car field was to wait another seven years.
The model H was introduced in June, 1907. Calendar year sales and production: 509 (1906- 1908). Model year sales and production: same.
Note: This was the last year for the planetary transmission fours and the counterclockwise cranking for Cadillac. The only remaining Brush features were the copper water jacket and the splash lube system; both of these were in use by Cadillac through 1914.
The model M was introduced in 1906. Model year production was included with the 1907 figures.
The models S & T were introduced on Nov. 1907. Calendar year sales and production: 1482 with S & T. Model year sales and production: same.
Note: Several hundred of the approximately 16,000 single
cylinder Cadillacs produced still exist in the hands of collectors all
over the world. A prominent Australian collector visiting Hershey
remarked, "Anyone wanting to restore, drive, and enjoy a one
cylinder car had best find a Cadillac" — no argument, mate.
